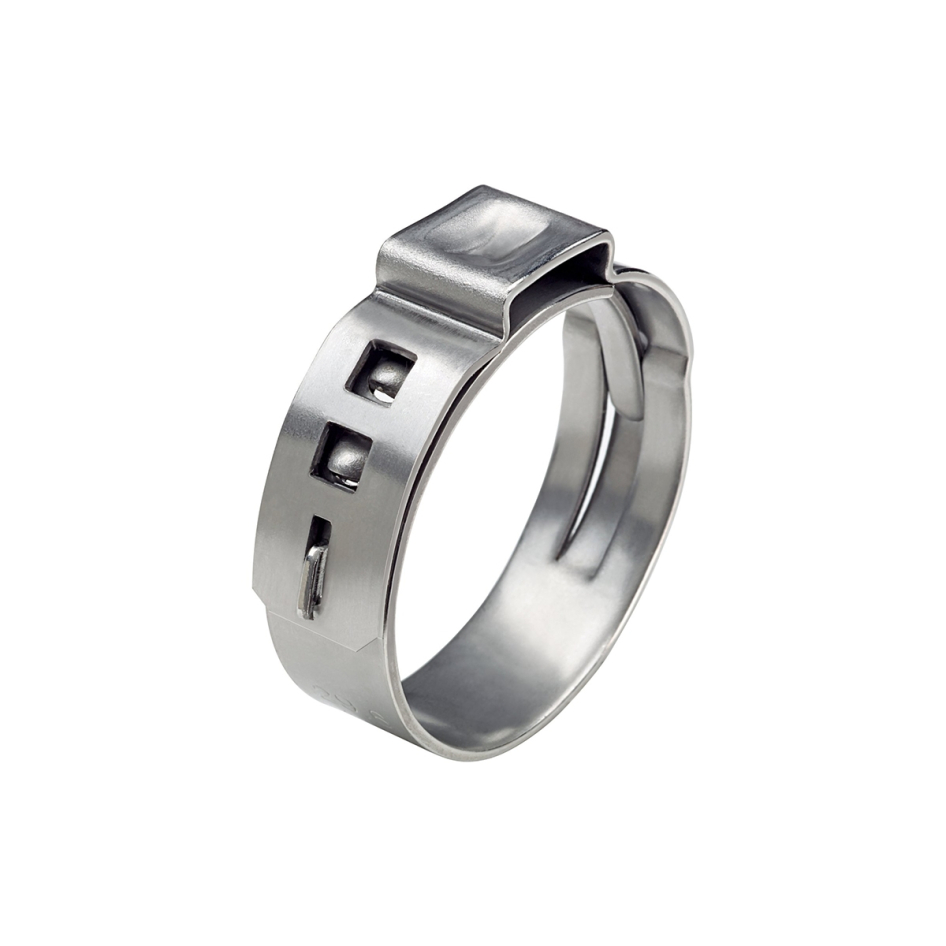

Oetiker Stepless O Clip Hose Clamp 12.3 - 14.8mm for Minibore (8mm ID Hose)
£0.56
In stock
- Suitable for use with Minibore (8mm ID) Hose and 8mm Barb Fittings
- This O clamp can be used to clamp down on hose with barb fitting inserted.
- To check suitability for use with other fittings/hoses - measure the OD of the hose with the barb inserted - if it is between 12.3 and 14.8mm then this fitting is suitable to be used
- To operate the clamp use a pair of O Clip Pincers to squeeze the side of the single ear together at the narrow point
- 167 Series Ear Clamp - Stainless Steel
- 7mm wide band for greater surface clamping area
- 360° StepLess - gives uniform compression and surface pressure
- Clamp Ear - compensates for component tolerances, barb size and hose material
- Dimple in Clamp Ear - Increases clamping force
- Burr-free strip edges to reduce material abrasion of hose
- Operating Instruction Sheet
- Video Guide
Size Guide:
|
- For Gardiner All-Season & PU Pole Hose fitted with any 5mm barbed hose fittings - very tight fit |
|
- For all Gardiner PVC & PU Pole Hoses fitted with any 5mm barbed hose fittings |
|
- For Pole Hose fitted with 6mm Barb Fittings and Flexible Reinforced Pole Hose with 5 or 6mm fittings |
|
- For Microbore (6mm ID) |
|
- For Minibore (8mm ID) |
|
- For 1/2" Hose |
Comm./imp. code no. 73269098
